Spectral Imaging for Portable EOD X-ray Threat Assessment
Portable X-ray imaging is a critical tool for security and defense teams assessing suspicious objects and potential explosive threats.
KA Imaging’s Reveal™ detectors introduce spectral imaging to portable X-ray inspection. Designed specifically for explosive ordnance disposal (EOD) and security operations, Reveal™ enables operators to capture multiple spectral images from a single exposure.
These additional images provide enhanced visualization of internal structures and improved differentiation of materials within inspected objects, helping operators interpret complex devices and identify potential threats with greater confidence.

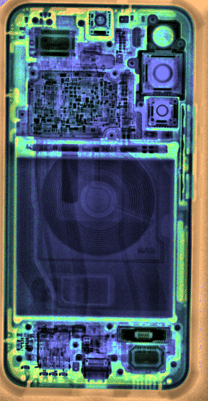

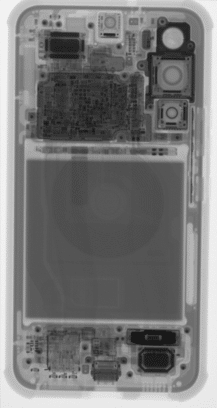

Side-by-side comparison between traditional portable X-ray and SpectralDR-enabled image. Green hues quickly identify explosive materials. SpectralDR imaging highlights material differences that may not be visible in conventional portable X-ray images, supporting faster interpretation of complex threats.
Portable Spectral X-ray Systems for Security and Defense
Reveal™ R 35C
Reveal™ R is a rugged spectral X-ray detector designed for portable security imaging and explosive ordnance disposal operations.
The detector integrates SpectralDR technology, enabling operators to capture multiple spectral images from a single exposure. These images provide additional information about internal structures and material composition within inspected objects.
Reveal™ R is designed for portable deployment and can be integrated into field inspection workflows where durability and reliability are critical.

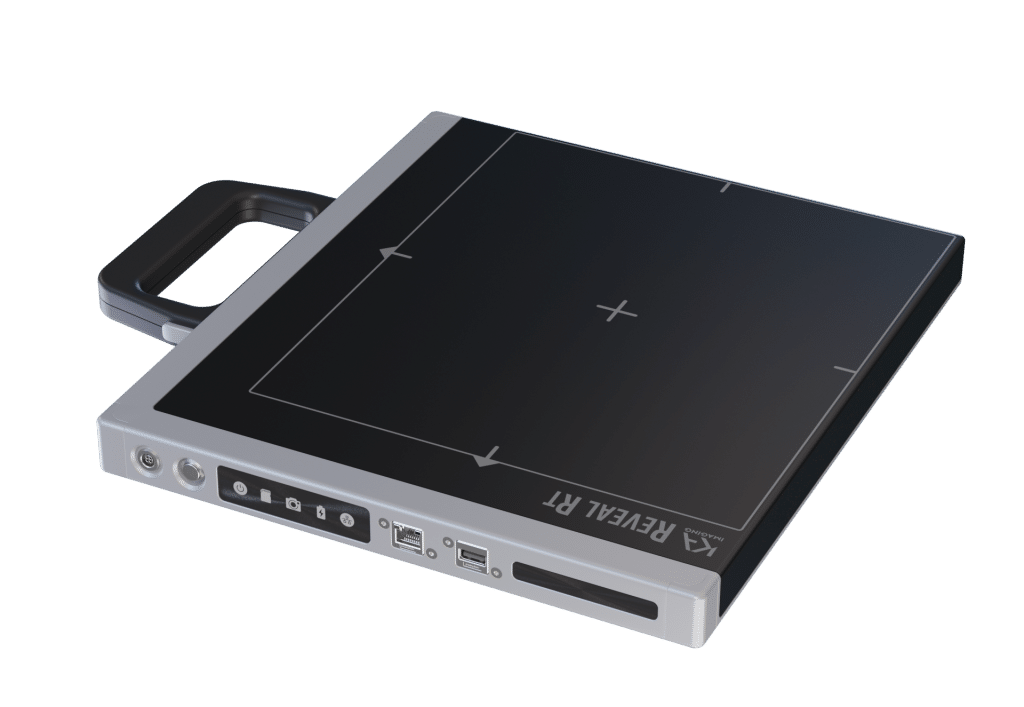

Reveal™ RT
Reveal™ RT is a rugged spectral X-ray detector featuring low edges, designed to facilitate imaging of objects positioned close to the ground or in confined spaces.
The low-edge design allows the detector to be placed closer to suspicious devices, improving imaging geometry in EOD scenarios where positioning flexibility is essential.
Like Reveal™ R, Reveal™ RT incorporates SpectralDR technology to generate multiple spectral images from a single exposure, enabling enhanced visualization of internal structures and materials.
Reveal™ Portable Imaging Packages
The Reveal™ Packages provide a complete portable X-ray imaging solution designed for field deployment.
The package can be customized to include the rugged Reveal detector along with the components required to support portable inspection workflows, enabling rapid setup during security operations and EOD missions.
This configuration allows operators to deploy spectral X-ray imaging quickly in situations requiring non-destructive threat assessment.
Operational Advantages for Field Deployment
Portable X-ray imaging systems used in security and defense environments must operate reliably in demanding field conditions. Reveal™ spectral imaging systems are designed to support rapid deployment, flexible positioning, and reliable operation during threat assessment.
Spectral Imaging from a Single Exposure
Reveal detectors powered by SpectralDR technology generate multiple spectral images simultaneously from a single X-ray exposure.
This capability provides additional visual information without requiring multiple exposures or changes to existing imaging workflows, enabling faster interpretation during threat assessment.
Ruggedized for Operational Environments
Reveal™ R and Reveal™ RT detectors are engineered for use in demanding field conditions encountered during EOD and security operations. Ruggedized construction supports reliable performance during transport, setup, and deployment in operational environments.
Flexible Detector Placement
Reveal™ RT features a low-edge detector design that allows the imaging panel to be positioned closer to suspicious objects or devices located near the ground or in confined spaces.
Portable Deployment
This design improves imaging geometry in situations where detector placement flexibility is critical.
Reveal spectral imaging systems are designed for integration into portable inspection workflows. Systems can be deployed in field environments to support rapid analysis of suspicious objects while maintaining operational distance.
Core Capabilities
Rapid Portable Threat Assessment
Portable X-ray imaging allows security teams to assess suspicious objects without direct handling. Reveal systems provide high-resolution imaging that enables operators to visualize internal components such as wiring, mechanical elements, and concealed structures before intervention procedures.
Spectral Imaging for Material Differentiation
Reveal detectors powered by SpectralDR technology capture multiple spectral images simultaneously from a single exposure. These images provide improved differentiation between materials that may appear similar in conventional X-ray images, helping operators interpret complex assemblies and identify components within potential threat devices.
Improved Interpretation of Complex Devices
Sophisticated threats often involve multiple materials and layered components. Spectral imaging enhances visualization of internal structures and material differences, helping operators better interpret device construction and configuration during threat assessment.
Testimonials
Security and Defense Applications

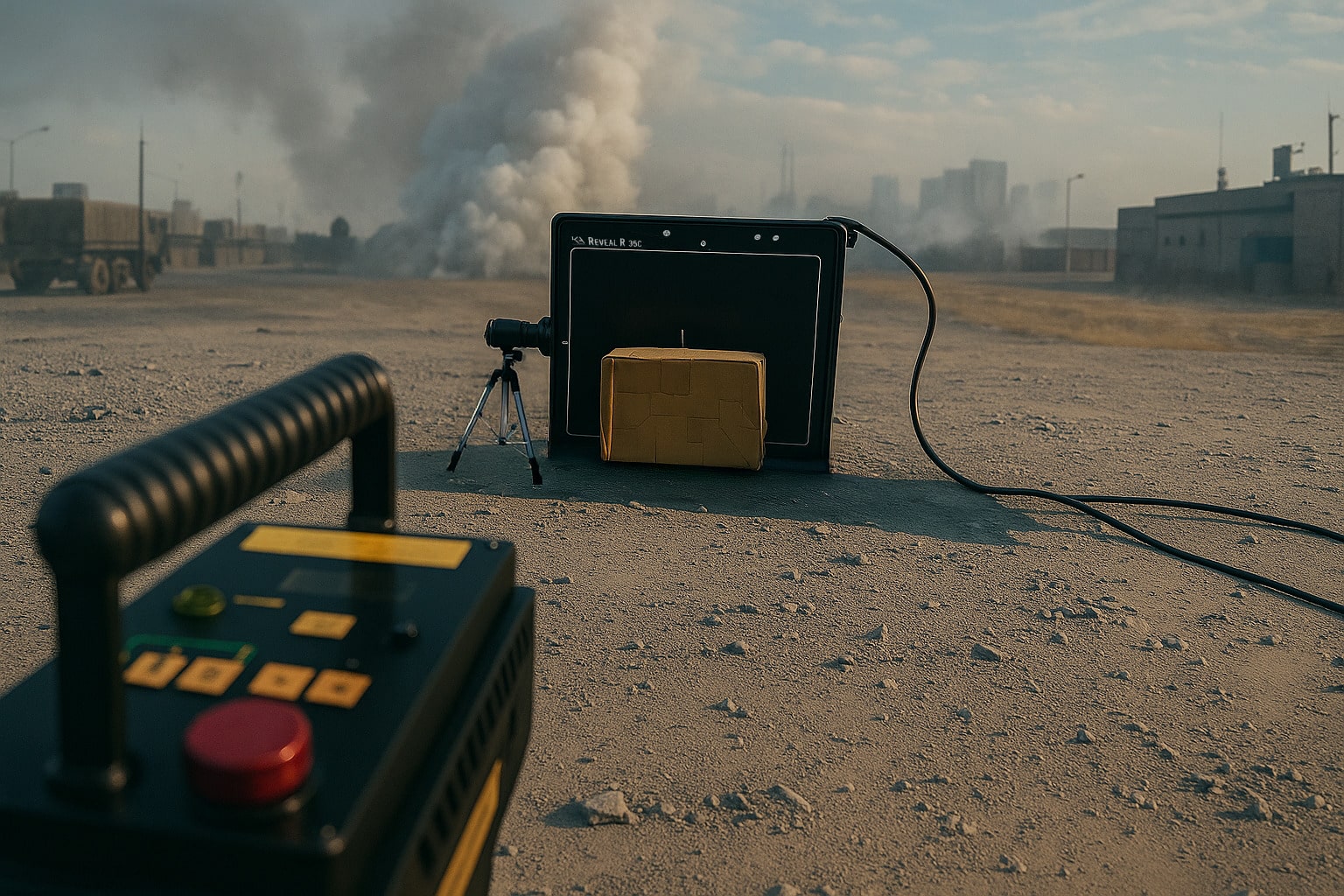

Explosive Ordnance Disposal (EOD)
Portable X-ray imaging is widely used by EOD teams to inspect suspected explosive devices and hazardous objects. Imaging provides insight into device structure while minimizing the need for direct interaction.
Reveal spectral imaging systems provide additional image information that can assist operators in identifying device components and assessing potential threats.
Military and Defense Operations
Defense teams may deploy portable X-ray systems to inspect suspicious objects, evaluate equipment, or support operational security procedures where internal structural information is required.
Rugged spectral imaging systems provide portable inspection capability in demanding operational environments.
Security Threat Analysis
Security agencies may use portable X-ray imaging systems to assess suspicious packages or objects during investigations or security incidents.
Spectral imaging can improve visualization of internal structures and material differences, supporting more informed threat analysis.
Why Spectral Imaging Matters for Threat Identification
Traditional portable X-ray systems generate a single image that can make interpretation difficult when objects contain multiple materials or complex internal structures. Reveal spectral detectors generate multiple spectral images from a single exposure, providing additional insight into internal structures and material composition. This additional information can improve the interpretation of sophisticated threats and support decision-making during high-risk operations.
Learn More About Reveal Security Solutions
Reveal™ R and Reveal™ RT systems combine rugged portable deployment with advanced spectral X-ray imaging capabilities to support security and defense teams performing non-destructive threat assessment.
Contact KA Imaging to learn how advanced X-ray imaging systems can support your imaging needs.
